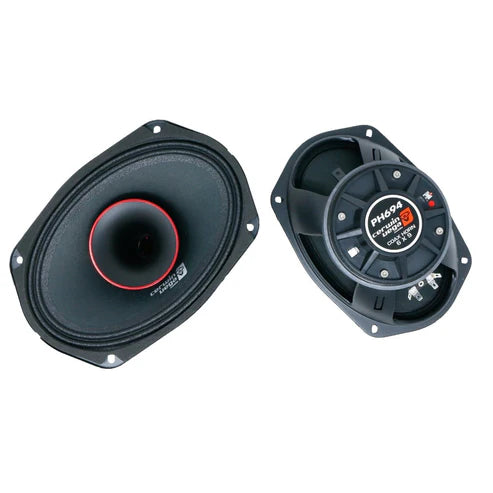

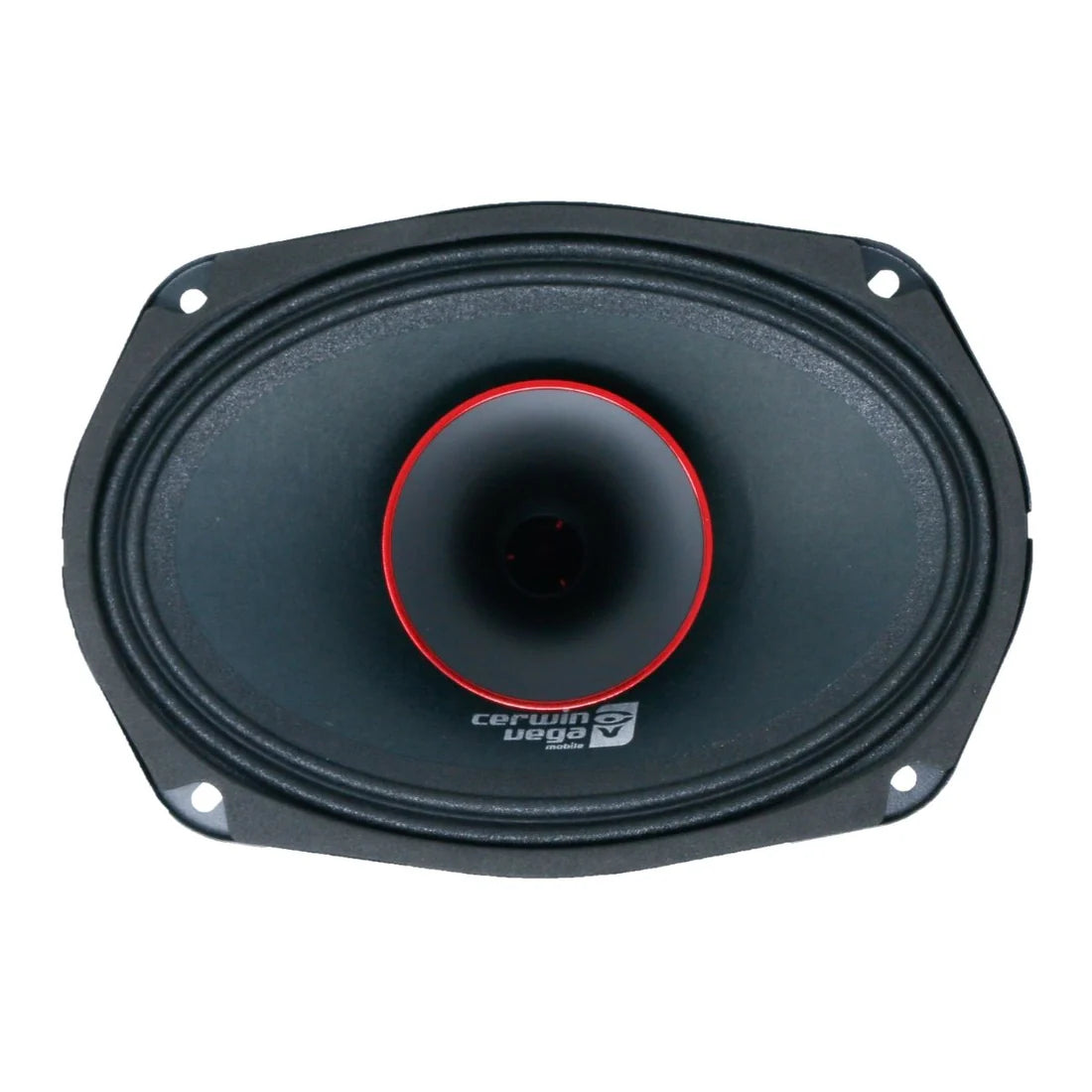

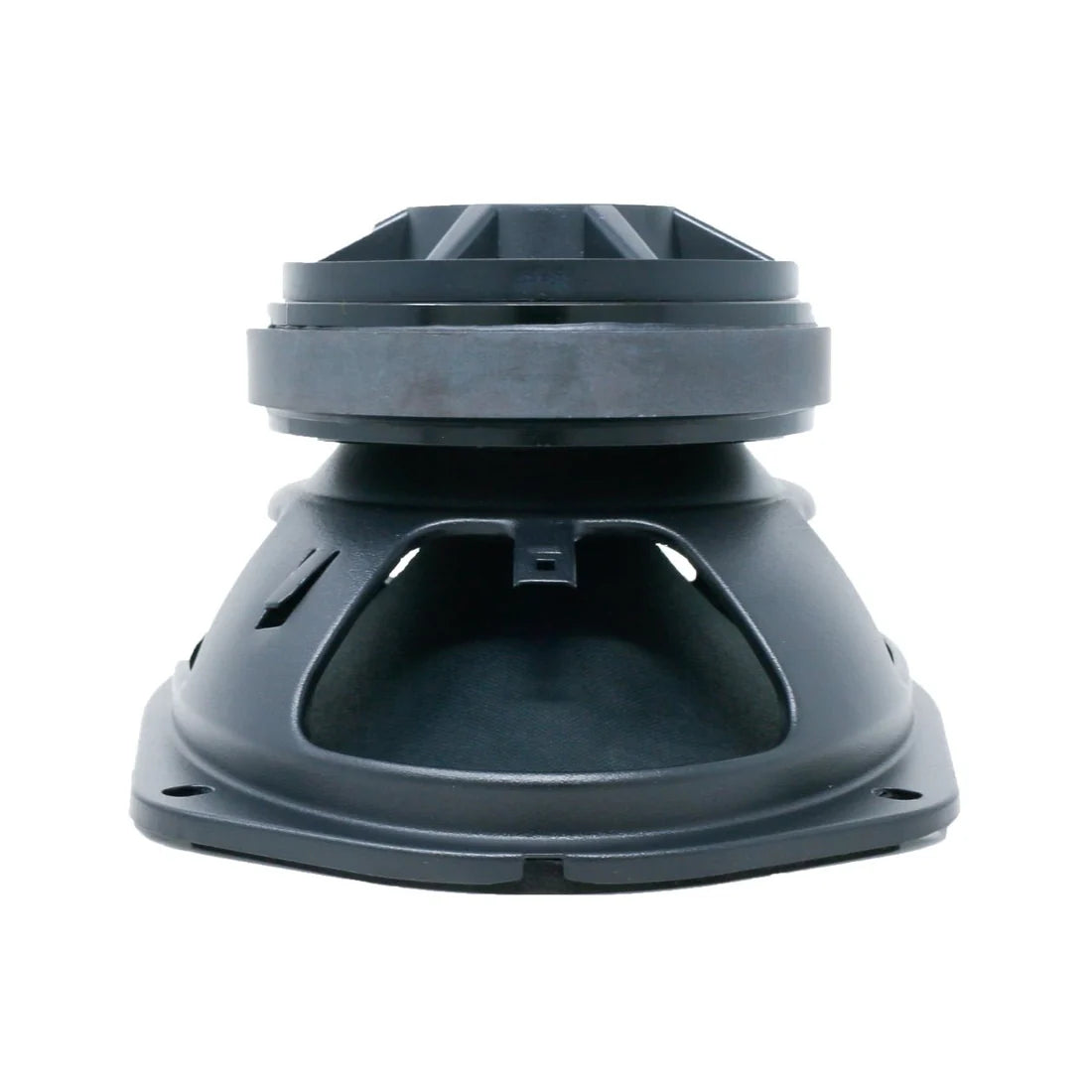

6"x 9" PRO Series 2-Way Full-Range Coax Horn Speakers - PH694
$0.00
Sale price
$0.00
Regular price
Skip to product information
pecifications
SPEAKER SIZE - 6X9”
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 4
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - TREATED PAPER
DIAPHRAGM MATERIAL - POLYIMIDE
STAMPED STEEL
MAGNET TYPE - FERRITE (CERAMIC)
SURROUND MATERIAL - TREATED CLOTH
CROSSOVER INCLUDED - YES - INTERNAL
FREQUENCY RESPONSE (HZ): 80HZ-18KHZ
""VOICE COIL DIAMETER - INCH (MM) - 2""""""
SENSITIVTY (1W/1M): 103DB
VAS (L): 22
XMAX (MM): 1.0” 25.4(MM)
POWER HANDLING RMS: 160W
POWER HANDLING MAX: 320W
MOUNTING DEPTH: 3.9” (99MM)
MOUNTING DIAMETER : 8.74X5.98” (222X152MM)
